How to fix an Atwood gas water heater?

Check connections and voltages and look for easy simple fixes (bad resistive switch contacts, ribbon cable connection, other limits) FIRST before investing in circuit boards etc. Atwood G6a-8E Gas water heater; problem: Turn switch on inside, no ignition. Leave switch off, go outside to heater and un-plug 4 pin connector.

How to troubleshoot a bad Atwood ignition switch?

Leave switch off, go outside to heater and un-plug 4 pin connector. Go back inside and turn switch on Go back outside and plug in 4 pin connector, then heater will ignnite !! Seems like bad switch or perhaps control board, or ??? It’s the board. An interesting troubleshooting process.

What kind of circuit board do I need for my Atwood water heater?

The quickest way to test a circuit board for your water heater is to use the circuit board from your Hydroflame furnace if you have one. The 8500 or 8900 models are the most compatible with your Atwood heater and should plug in easily. There will be the same 20-second delay that happens on your furnace when you power up the water heater.

Can a g6a-8e RV water heater be replaced?

RV Water Heater Thermal Cut Off Switch Kit Replace for Atwood 93866 Work for The Electronic Water Heater Models # GCH6-4E GCH6-6E G6A-7E G6A-8E GC6AA-9E GCH10A-2E G610-3E GH610-3E XT Series. In Stock. In Stock. In Stock. In Stock.

How big is an Atwood g6a 8E water heater?

G6A-8E Item Weight 21 pounds Package Dimensions 25 x 23.25 x 21.25 inches Is Discontinued By Manufacturer No Item Package Quantity 1 Batteries Included? No Batteries Required? No

What causes pilot outage on Atwood water heater?

A blocked U-tube can also cause pilot outage. Clean the tube and get rid of any obstruction there is. You should check the gas pressure and ensure it is in accordance with the recommendation of the manufacturer, in this case, Atwood.

How long does it take for a water heater to go out?

Or did they hear the sparking and gas igniting, but going out in 3 to 4 seconds. On some RV’s you can hear the water heater sparking and the gas lighting from the inside. A water heater will try to ignite 3 times and stop.

What should I replace my Atwood water heater with?

Need replacement for G64-7E Your water heater part number G6A-7E is 16″ W x 12-1/2″ H x 18″D. You can replace it with the gas/electric unit like the manual pilot # AT96117 or the Automatic pilot # AT96163.

Why does my Atwood water heater not light?

My Atwood g6a-8e water heater is refusing to light. The green light comes on on the control panel, but nothing happens – the red light doesn’t come on either. Last year I replaced the thermostats, the igniter and the pressure relief valve. The fuse looks good.

What should air pressure be on Atwood 6 gallon water heater?

If it’s low, set your inlet pressure at least 11”W.C., and in case of improper air, adjust your main burner’s air shutter to at least ¼ way opened. Keep in mind that the flame should be quiet and blue. The Capacity Of A Water Heater Is Measured In What ?

How to light an electronic ignition water heater?

How Do You Light an Electronic Ignition Water Heater? 1 Locate the igniter button. 2 Press and hold down the button. 3 Listen for the click and ignition. 4 Locate the igniter button and knob. 5 Switch the knob to pilot.

Is the Atwood g6a-8e water heater good with mineral water?

But that is not the case and you should be good even with mineral water. The Atwood G6A-8E requires people to clean it regularly. This helps the water heater to work in its best condition and should even prevent most problems from happening.

What’s the model number of my RV water heater?

Model number G6A-8E. My method of troubleshooting is to test the cheapest items first, fuses, breakers and connections and then move onto more expensive items for testing like the circuit board. Instagram Loading…

Do you need to clean your Atwood g6a-8e water heater?

The Atwood G6A-8E requires people to clean it regularly. This helps the water heater to work in its best condition and should even prevent most problems from happening. Considering this, if you have been running into problems with your heater and you have not cleaned it for some time.

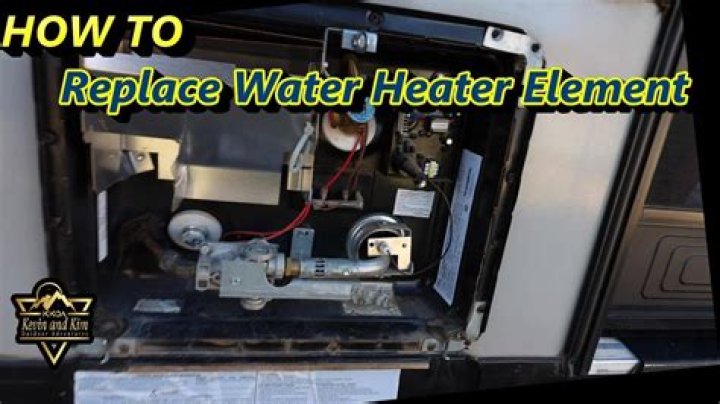

How do you replace an Atwood water heater?

How to Replace Atwood Water Heater Element. On some models, you will have to remove the junction box out before you get access to the heating elements. Once you have done that, you will see that the element has 2 wires attached to it. Your next step is to remove the two wires which is easily done by loosening the screws. Now for the tricky part.

What to do if your Atwood levelegs won’t move?

If your Atwood Levelegs electric jacks quietly refuse to move, make sure that the engine is running, the rig is in park, and you have the parking/emergency brake set.

When do Atwood levelegs Jacks get cranky?

It seems the jacks only get cranky when they haven’t been used in a while and they are fully extended. If you make blocks like these, I’d recommend using treated lumber, then priming and painting them, otherwise they’ll rot quickly when in contact with the ground.

Are there different types of electronic ignition water heaters?

There is more than one type of electronic ignition water heater. To better understand how yours works, you will need to know what type you have. Induced draft water heater. An induced draft water heater is a type of water heater that uses a small fan, to draw the combustion gas from the combustion chamber.

Why does my Atwood water heater have no spark?

Atwood water heater has no spark on the electrodes Electrodes provide power to the anode rods, which prevent rusting inside the water heater. Here are the troubleshooting tips when your water heater produces no spark on the electrodes. Check the electrode and primary burner connection.

How do you test an electric water heater element?

First turn off the breaker in your main electric panel to the water heater. Electric water heaters usually use 30 amp circuit breakers. Remove both panels attached to the side of the water heater. Remove the insulation and remove the plastic safety covers. The covers just snap on and off the element and thermostat.

How many times does a water heater try to ignite?

A water heater will try to ignite 3 times and stop. Turning the inside switch off and on will restart the 3 lighting process and many times the heater will work on the second 3 tries. Which is the end result of what you are doing with the unplgging and plugging of the cable. You are starting the second round of lighting tries.

Do you have to replace the probe on a water heater?

I also never replace a water heater circuit board without also replacing the probe since they do fail more frequently than the circuit boards and they cost far less to replace.

What is part number for coach hot water heater?

91346 was the atwood part number for the OEM board on my 2017 coach gas/electric water heater. That number could not be found on any retailer profile! No cross reference to other partnumbers of a new board were discoverable. The hot water unit an Atwod GC10A-4E was crossed for a control board Atwood part I ordered. # 91365.

What are the parts on an Atwood combo board?

COMBO BOARD: Controls BOTH the LP ignition and the Electric Element. Atwood part #93309 (edge pin connector) NOT included. TECHNICAL SUPPORT: Atwood provides prompt support in diagnosing and resolving technical problems. These items are shipped from and sold by different sellers.

What to do if your water heater won’t ignite?

It indicates the the heater has failed. Try checking connections on circuit board by removing four pin connector and clean contacts on board. Next clean ground wire connection on the gas valve. There should be two wires connected together that goes to the gas valve coils (two) and then to ground. Bud USAF Retired Pace Arrow

What kind of igniter board can I use in an RV?

I usually keep a spare Dinosaur UIB-S universal igniter board on hand that can be used as a replacement in many RV furnaces, water heaters, and refrigerators. I usually keep a spare Dinosaur UIB-S universal igniter board on hand that can be used as a replacement in many RV furnaces, water heaters, and refrigerators.

What’s the best replacement for an Atwood RV water heater?

The best replacement option we have for an Atwood G6A-7 Water Heater (Gas Only, 6 Gallon, Manual Pilot) is the Atwood RV Water Heater part # AT96121 (Gas Only, 6 Gallon, Auto Pilot). The only difference is this model has an automatic pilot whereas your old model had a manual pilot.

Why does my Atwood water heater not ignite?

There are several issues behind why your Atwood Rv water heater doesn’t ignite. In this chapter, we break down every possible cause and provide the solution as well. A thermocouple is a device that senses the heat of a pilot and lets the gas flow to the burner.

How tall is the Atwood g6a-7 water heater?

The only difference is this model has an automatic pilot whereas your old model had a manual pilot. Please note, if you wanted to use the Atwood RV Water Heater part # AT94180 (Gas Only, 10 Gallon, Manual Pilot), you’d need to ensure you have enough room for the new 16″ tall x 15-1/2″ wide x 20-7/8″ deep unit.

Can a suburban 6 gallon water heater be replaced?

For 6-gallon models you can purchase Suburban’s part number 520787 6-gallon aluminum tank water heater replacement kit. This kit includes a standard mount door frame, two flanges to trim out the side wall opening, and a Colonial white door with hinge.

What should I do if my water heater wont turn on?

If you want to speed up the process, with the heater off, turn your faucet on in the hot water position till you have run about ten gallons through. That should be enough to cool it off so you can work on it.

What should I do if my water heater is leaking?

Let the water pressure from the hose attachment allow you to force the chunks of calcium and minerals out of the tank. Do this till the water coming out is clear. If you have a Suburban water heater, inspect the anode rod. If it is more than half gone you should replace it!

How long does the Atwood water heater stay lit?

I have an Atwood water heater DSI Model G6A8E it will light for about 30 seconds then shut down. I have cleaned the tubes, checked the grounds, the ECO reads with an ohmmeter, as does the thermostat,I get a reading with the thermal cutoff (I am not to sure about this one tho.)

What is the Atwood RV water heater part number?

Atwood Mobile Products 90269 Gas Valve Kit 45K Btu Odwh Brand: Atwood Mobile Products Part Number: 90269 Gas valve kit 45K BTU odwh A world leader in designing, engineering, and manufacturing appliances and hardware for RV industry for over 30 years. MORE – Product Info Including Updated Prices, Images & Customer Reviews – CLICK HERE …

Is there a gas valve on an Atwood ignition?

If there’s no gas valve opening nor any HV arcing and the board is receiving full voltage, then I suspect the board.

How many Atwood g6a-7’s are left in stock?

Only 1 left in stock – order soon. . Only 18 left in stock (more on the way). . Only 5 left in stock – order soon. . Only 2 left in stock – order soon.

How big does an Atwood water heater need to be?

Atwood water heaters are designed and approved for use only in recreation vehicles (travel trailers, 5th wheels, motor homes, etc.). They are offered in two sizes: 6 and 10 gallon capacities. TYPE OF GAS IGNITION –

If there’s no gas valve opening nor any HV arcing and the board is receiving full voltage, then I suspect the board.

How can I Fix my Atwood ignition board?

A new board will fix the problem, but the board is not the problem. It is the connector on the wiring harness. As explained by the OP, just remove and reconnect the wiring harness and all will work at least temporarily. I more or less solved the problem by using a paper binder clip to apply tension onto the connector.

Can a 6 gallon water heater be used in a 5th Wheel?

Atwood 6 and 10 Gallon Pilot Water Heaters Atwood water heaters are designed and approved for use only in recreation vehicles (travel trailers, 5th wheels, motor homes, etc.). They are offered in two sizes: 6 and 10 gallon capacities.

How does an induced draft water heater work?

An induced draft water heater is a type of water heater that uses a small fan, to draw the combustion gas from the combustion chamber. Induced draft water heaters use an intermittent pilot or hot surface ignition instead of a standing pilot light.

Where is the eco switch on an Atwood RV?

In 2003, Atwood relocated the Switch, Thermostat and ECO that was installed on the back of combination 6 and 10 gallon Gas/Electric Water Heaters. A double switch is now located inside the RV for convenience and a joint ECO and T-Stat is located on the gas side of the water heater.

Which is the best on demand electric water heater?

Atwood water heaters are top of the line when it comes to giving you the amount of heat you need in your water. Atwood motor home water heaters now offer a new line of On Demand electric water heaters which instantly heat the water as you need it so you don’t run out.

What kind of heat does an Atwood furnace give?

The Blue Flame Ceramic Atwood RV Furnace Heaters are the most recent innovation and give another kind of warmth than the clay and reactant radiators. As opposed to transmitting heat, they work through convection, attracting cold air by utilization of vents at the warmer’s base and expelling warm air from the vents in the radiator’s top.

What makes an Atwood RV heater so good?

Flowing the air along these lines holds the oxygen amount amid the air genuinely consistent and essentially diminishes the buildup rate in the internal parts of the Home windows, as the dampness will get blown outside together with the empty air. Another kind of Atwood RV Furnace Heater is without vent propane radiators.

Why do people call Atwood mobile products customer service?

Why Do People Call Atwood Mobile Products Customer Service? 5M ago “Gas works on GC6A-10 RV water heater but not electric. I’ve replaced 110 switch, heating element, ECO and T-Stat as well as circuit board. Still no electric heat.” 7M ago “Looking for a paddle 24″.

Can a water heater be converted to electronic ignition?

Conversion of a Water Heater to Electronic Ignition – Once you have the 24-volt power source for the new control and gas valve you should follow the instructions exactly. The instructions provided with the kit. The kit I have personally used with great success in the past is the Honeywell conversion kit captioned in the photo above.

Is the Atwood water heater approved for recreation?

Atwood water heaters are designed and approved for use only in recreation A more detailed explanation of cladding is found in the back of this manual. wiringall.com B. Necessary tools and equipment to service Suburban Pilot and DSI Water Heaters.

What is the wiring diagram for an Atwood RV?

Atwood Electronic Ignition 6 Gallon User Manual (42 pages) Wiring Diagram. atwood rv hot water heater wiring diagram (86 items found) Best Match Price, Low to High Price, High to Low Name, A-Z Name, Z-A Top Rating New Arrivals SORT BY. The water heater tank must have factory equipped heat exchange tubes welded on it already.

What is the Atwood gas hot water heater switch number?

Included below is a wiring diagram that shows how the Atwood water heater switch part # AT91959 gets wired up. The middle diagram you would use since your water heater is the G6A-8E.

What’s the temp of the Atwood 6 gallon water heater?

Atwood 6-gallon water heater unit is pre-set at a temperature 140-degree Fahrenheit, which is adjustable from 110 to 150-degree Fahrenheit; this unit is operated on propane gas and can only be ignited inside of the trailer using an on/off remote switch.

What’s the weak link in an Atwood hot water heater?

This is the weak link in the Atwood Hot Water Heaters (in our 2006 Weekend Warrior 3305 5th Wheel). So these will pop, you replace just the fusible link portion and ( (presto)), your HWH works again and your wife is happy… Happy Wife, Happy Life!!! By a couple, keep them as spares. Good insurance.

How big is an anode rod for an Atwood water heater?

RV Water Heater Magnesium Anode Rod for Atwood Heaters, Dele 2 Pack 1/2″ NPT RV Hot Water Tank Anode Rod for RV, Camper and Trailer Water Heaters Product Description & Features: Size and Material type: Magnesium anode rod, 4.5″Long, 0.5“diameter, 1/2″ Threads. Extends the life of a water heater by attracting corrosive elements in …

What does it mean when water heater tries to ignite?

On some RV’s you can hear the water heater sparking and the gas lighting from the inside. A water heater will try to ignite 3 times and stop. Turning the inside switch off and on will restart the 3 lighting process and many times the heater will work on the second 3 tries.

When does the green light come on on a water heater?

When I hit the switch to turn on the heater, the green light comes on and stays on throughout the heating and after the burner kicks off. There’s a red light that comes on if the burner doesn’t ignite or if the burner doesn’t re-ignite after it’s successfully heated the water.

How big is the Atwood RV water heater?

Atwood water heaters are mounted flush on the RV sidewall. Atwood Water Heaters feature foam-insulated aluminum tanks. These insulated tanks prevent heat loss. Our fast recovery Water Heaters produce hot water up to 7.4 gallons per hour at 70% efficiency. The RV heater features a Pilot Ignition that has efficient time-tested performance.

How often should I Flush my Atwood water heater?

Before starting the heater fill it completely with water. Flush your tank at least once a year. To flush it, drain the water in the tank and pump fresh water in the tank for five minutes. The company gives two years warranty from the date of purchase.

How big is a 6 gallon Atwood water heater?

Standard water heaters are available with a manual pilot light or a 12V direct electronic spark ignition. Vintage trailer owners are very concerned about weight. At dry weight, Atwood six-gallon models are 14 pounds lighter than competitive models; 10 gallon models are 30 pounds lighter.

How old is the Atwood mobile water heater?

The Atwood brand is 30 years old, and their designs are based on the older Bowen company which they purchased. Atwood has a great deal of experience building lightweight, reliable products for mobile conditions. Atwood water heaters slide in from the outside of the trailer and sit on the floor of the trailer.

How does an Atwood water heater work in an RV?

With an Atwood water heater, you don’t have to stay at home to enjoy warm water. You don’t have to bring a bulky unit that doesn’t fit in with your RV. Atwood water heaters are mounted flush on the RV sidewall. Atwood Water Heaters feature foam-insulated aluminum tanks. These insulated tanks prevent heat loss.

Which is best Atwood or Bowen water heaters?

The cutout size of Atwood heaters has remained essentially unchanged through the years, so replacement of vintage Bowen water heaters with Atwood water heaters is the best choice. See sketch for dimensions. Atwood makes three categories of water heaters: Standard, Exothermal and Tankless.

Is there a kit to convert a gas water heater to electronic ignition?

Honeywell Conversion Kit Available here – includes gas valves and all the parts needed for the conversion. There are a few manufacturers that offer complete electronic ignition kits. Kits to make it easier for you to make the conversion. The kit will not include a transformer which you will need plus a source of power.
